SPECIFICATIONS

Choice: yes

High-concerned chemical: None

Is Smart Device: No

Set Type: Yes

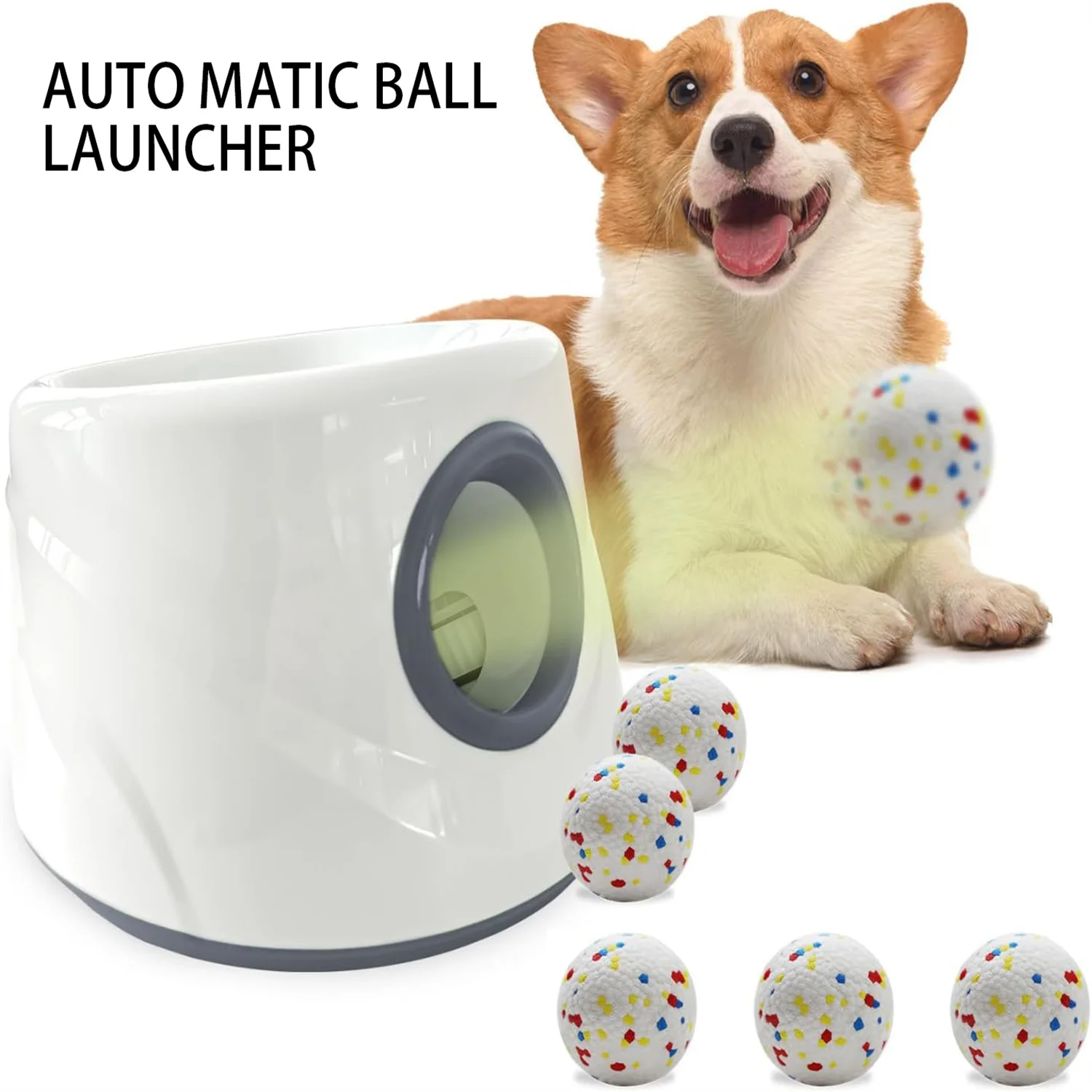

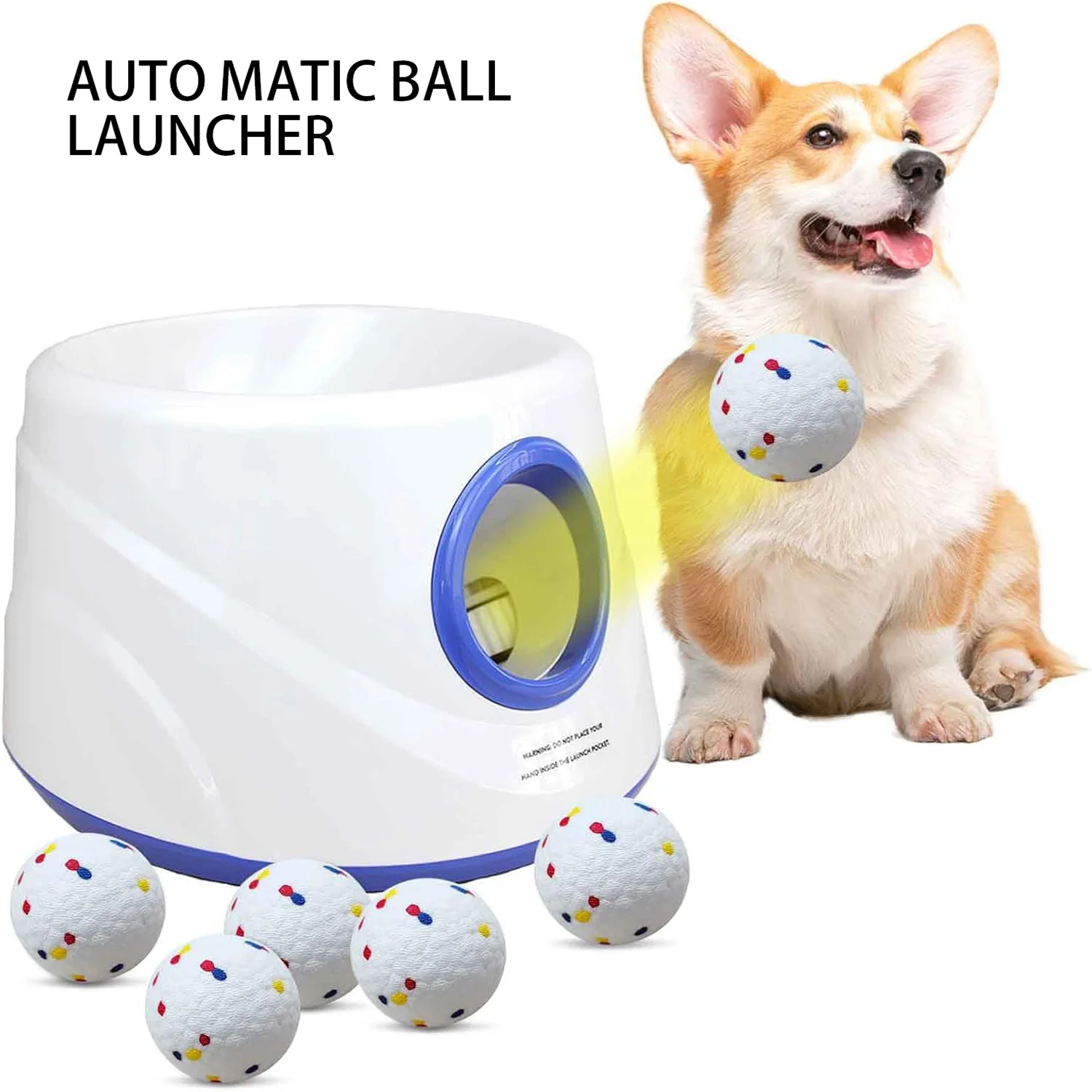

Toys Type: Automatic Ball Launcher

Type: Dogs

whether electrical: Yes

Plastic material: ABS

Battery: Built-in 11.1V 2000mah lithium battery pack *1 pack (The battery pack is in 3 series, battery model 18650, power 24.42WH)

USB-tpc charging: Supports 5V/ 9V/ 2A/H fast charging (no charging adapter is included upon shipment)

Voltage: Maximum operating voltage: 12.6V

Current: Maximum operating current: 2800mA

Working hours: 5 to 6 hours

Operating temperature: -10℃ to 45℃

Storage temperature: -10℃ to 45℃



Electrical protection: Battery overcharge protection. Charging stops when the voltage exceeds 12.6V

Battery over-discharge protection: stops discharging when the voltage exceeds 9V, and short-circuit protection: stops output when the current exceeds 5A

The weight of the launch ball: 19 grams

It can be launched about 1,500 times when fully charged. It can be used continuously for about 6 hours.



Usage method:

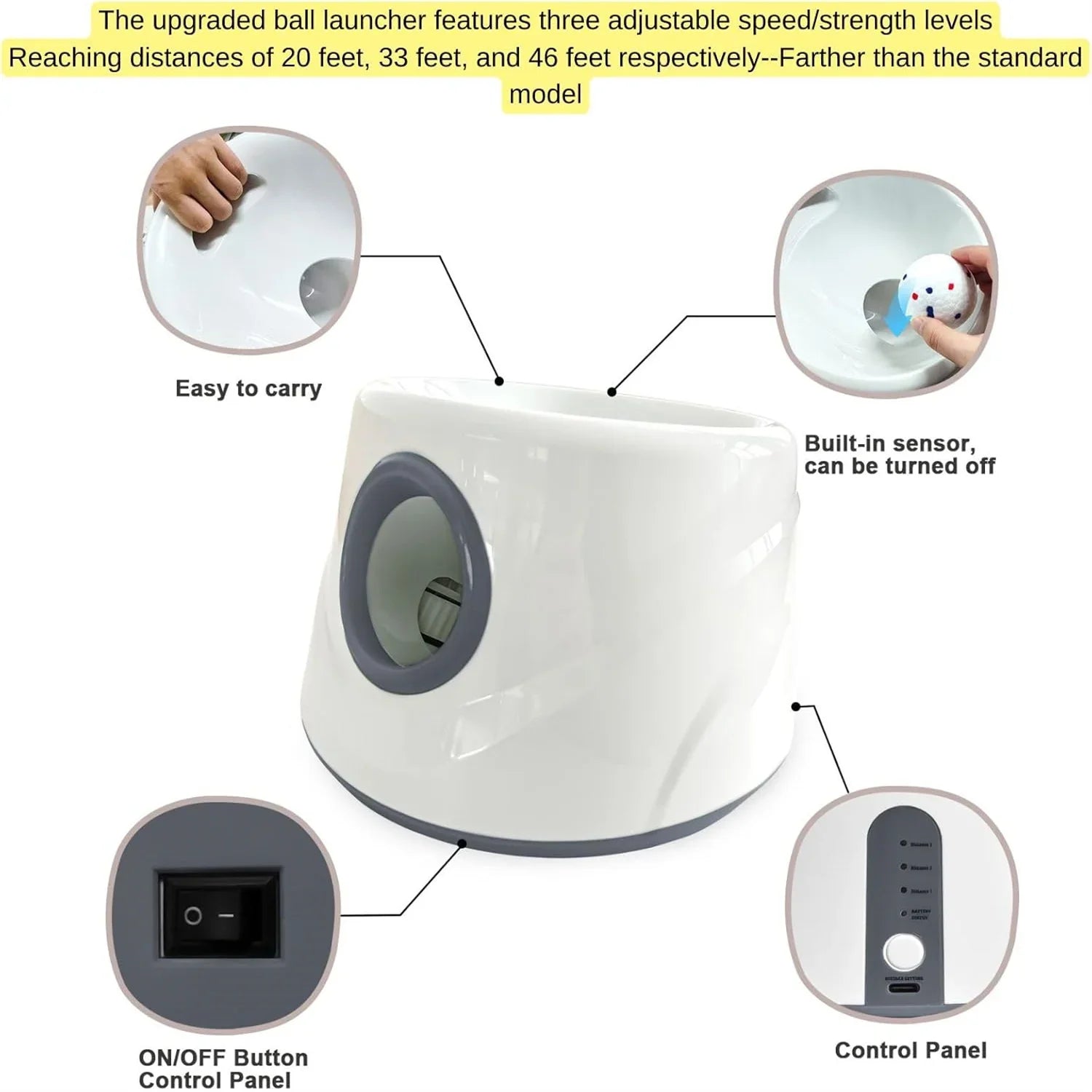

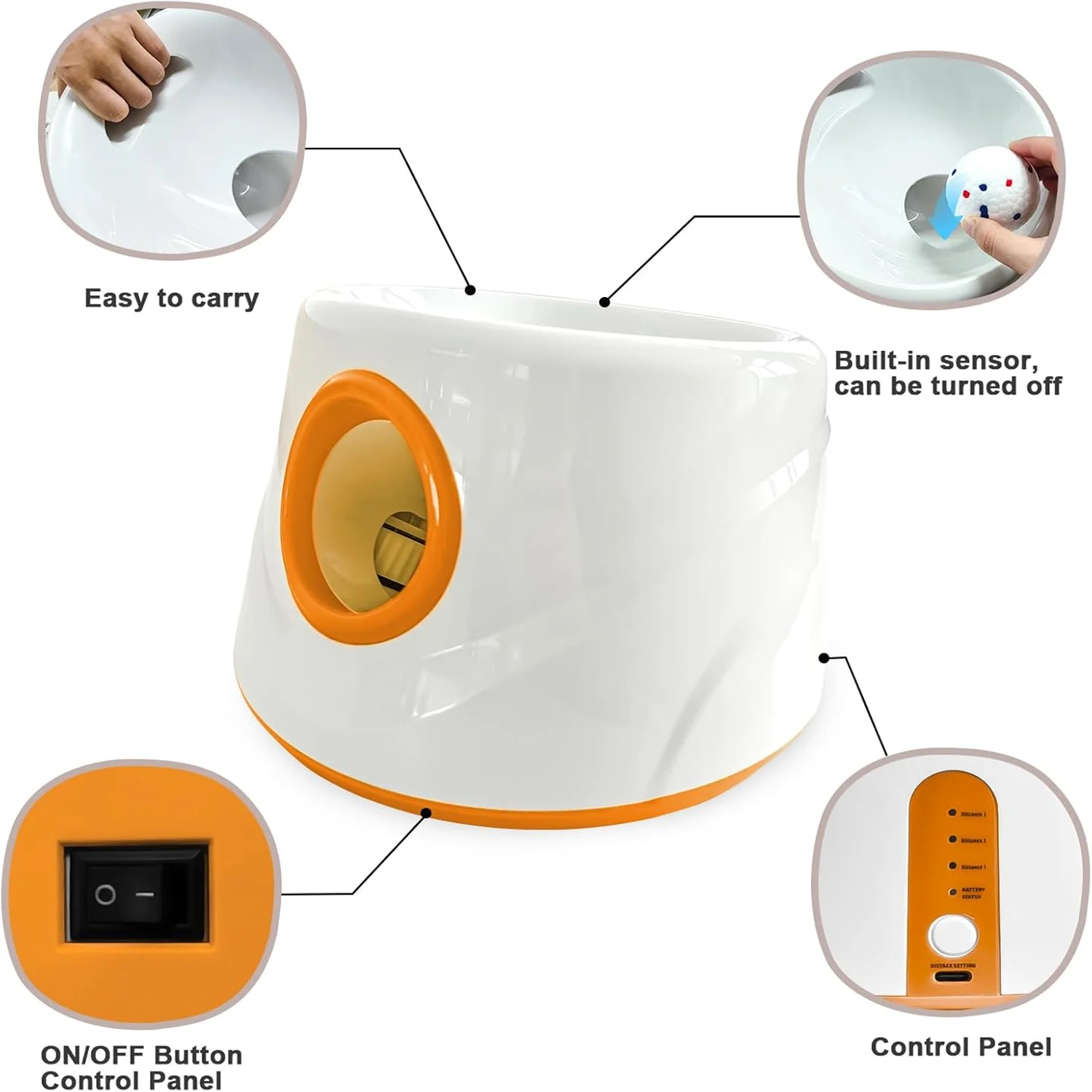

Press the ON/OFF button at the bottom to turn on the machine. Each time the ball machine is turned on, it takes about 6 seconds for a startup self-check. During the self-check period, the machine is unable to launch the ball.

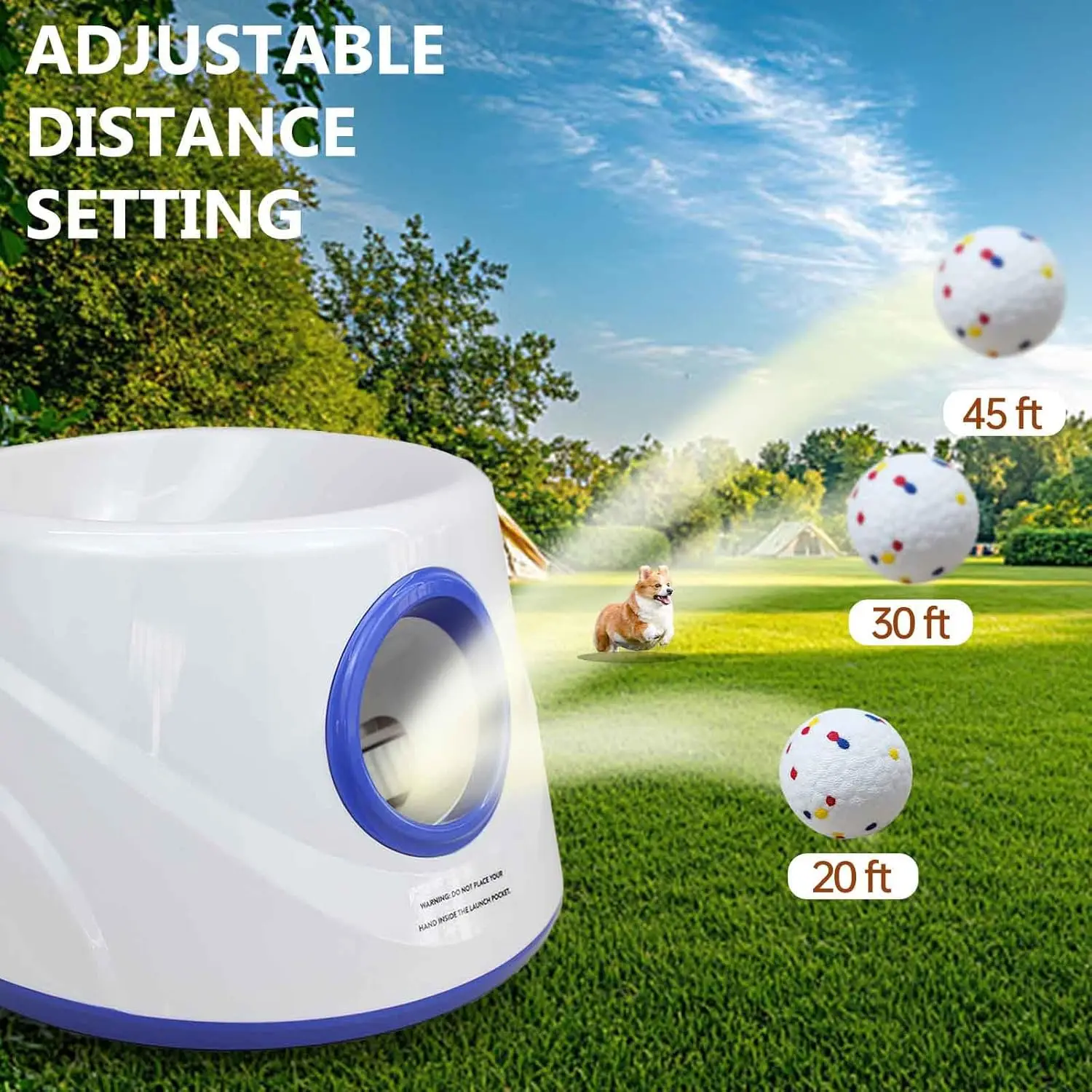

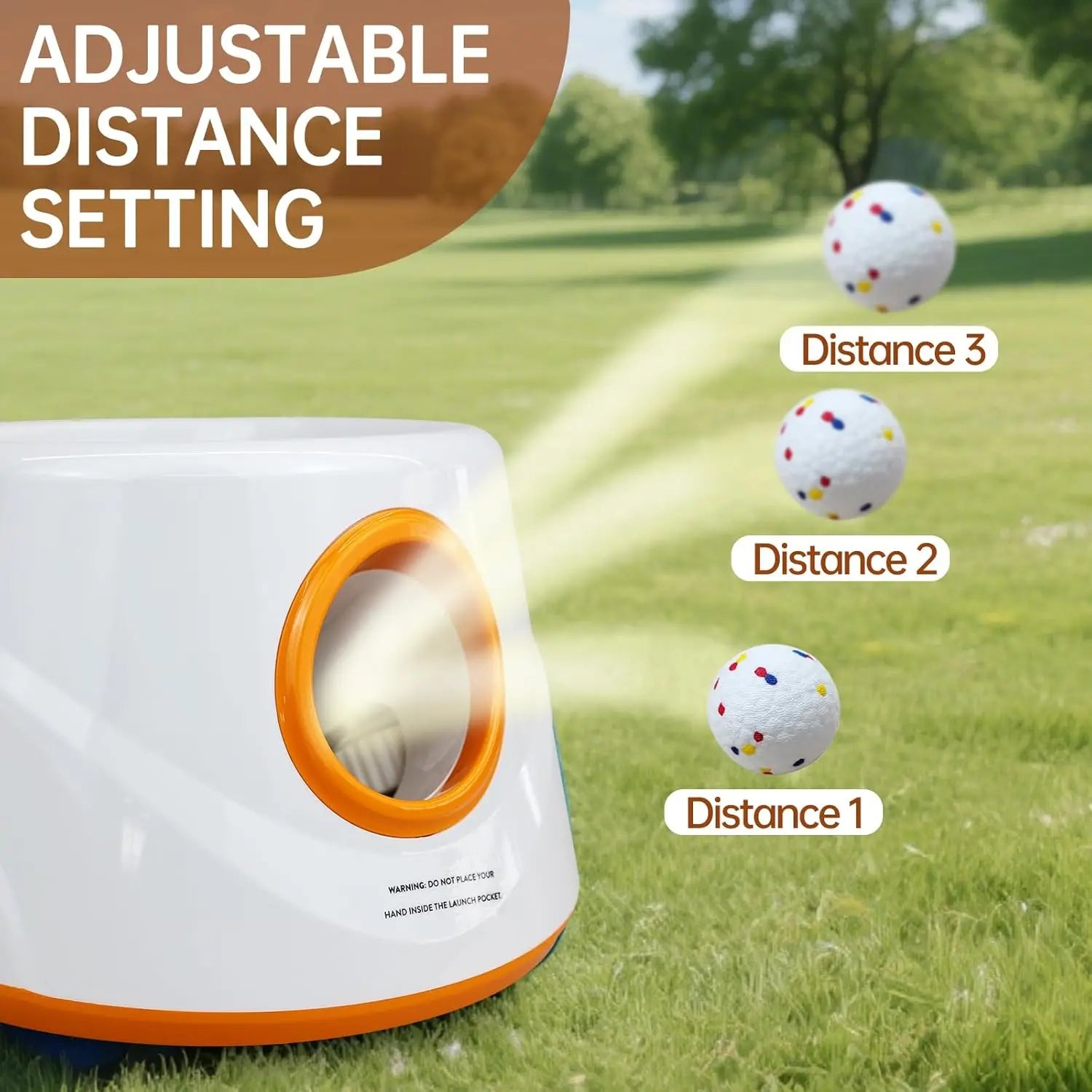

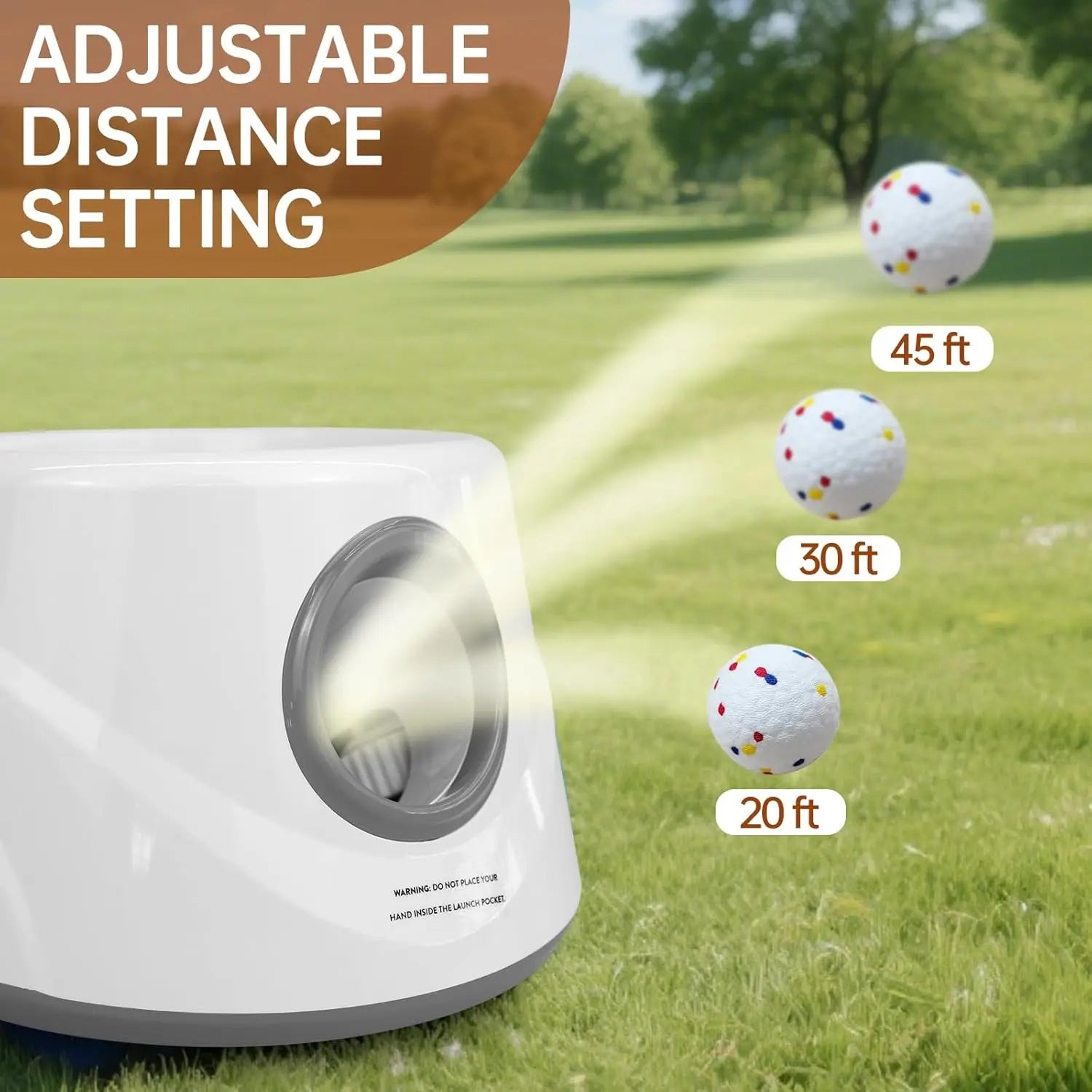

2. The ball launcher has three launch distance ranges:

Distance: 1:5-7m/16-33ft

Distance 2:9-11m/29-36ft

Distance: 3:13-15m/42-49ft.

By default, when the machine starts up, the distance is set to distance 1. Please press the distance setting button once to reach distance 2 and twice to reach distance 3.

3. Just throw one ball into the hole at the top of the machine. The ball will be launched within 5 seconds, and then another ball will be thrown in within 5 seconds. It is not allowed to put several balls in at one time.

If the ball gets stuck in the launch bag, tilt the machine forward and the ball can be launched.

4. If the machine is not used for more than 30 minutes, it will automatically enter standby mode. If you need to use it again, please press and hold the "Distance Setting" button for about 5 seconds, or turn it off and on at the bottom to make it work again.

5. Please replace the ball with an Etpu ball with a diameter of 58mm provided by our factory. If other tennis balls are used, it will affect the shooting distance or cause the product to fail to work.

Battery level indicator light instructions:

The green light will be on when the battery level is above 90%

2) A yellow light will be on when the battery level is below 90% or above 25%

3) The red light will come on when the battery level drops below 25%

4) When charging, the red light flashes when the battery level drops below 25%

5) When charging, the yellow light will flash when the battery level is below 90% or above 25%

6) When charging, the green light flashes when the battery level is above 90%, and the green light flashes when it is fully charged.
